Model
iThermal-T 3/6

Item specifics

Weight
<110 g (without lens)
Size
50mmx 44 mmx46 mm (without lens)
Power consumption
<3W
Humidity
≤90% RH
Storage temperature
45°C~+65°C
Serial port
1*RS232, 1*RS485
Raw file output
Support
Sensitivity
≤50mk@300K

Product review

Description

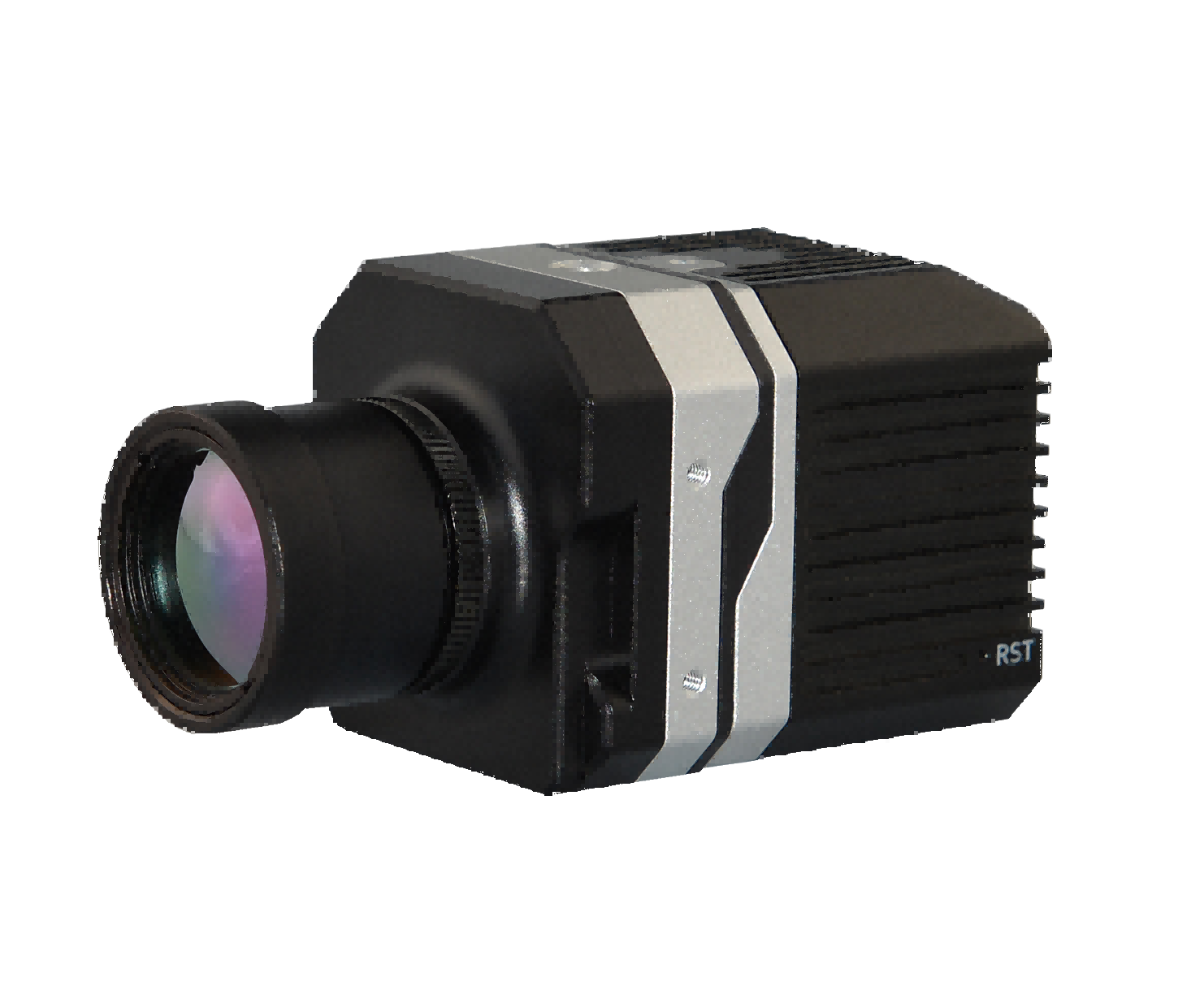

Thermal module with Shutter IP thermal core ThermEye



iThermal-T 3/6

1.Support Raw File Output
2.Thermal Resolution 640x480
3.NETD ≤50mk
4.Response Waveband: 8μm to 14μm
5.Object Temperature Range: -20° C~+150° C, 0° C~+400° C
6.Accuracy: ±2°C or 2% of reading (for maximum)
7.Built-in video compression coding, easy for network transmission.
8.Temperature measurement with different methods
9.Support after-event analyze
10.Compact size, easy for integration
11.AGC (automatic gain stability), 3D noise reduction, IDE (image details enhancement algorithm).
12.Powerful client software functions

Technical Specification

Items/Technical specification
iThermal-T 3
iThermal-T 6
Detector characteristic
Detector
Uncooled Microbolometer FPA (Amorphous Silicon)
Array format/ Pixel pitch
384x288/17um   640× 480/17μm
Sensitivity
≤50mk@300K
Frame rate
25Hz
Spectral range
8~14μm
Optical property characteristics
Focal length
6.6mm (only for iThermal-T 3) 9.6, 15, 19, 25mm. etc (fixed-focus);25mm, 35 mm,50mm. etc. (auto focus)
Focus
Manual/Electric (Electric lens supports auto-focus)
Image processing
Network image resolution
720x576 640x480
Analogue image resolution
720x576 640x480
Mainstream rate
25fps:720x576 /25fps:640x480
Sub-stream rate
25fps:352x288 / 25fps:640x480
Image mode
HDR (high dynamic range), linear
Image enhancement
IDE (image details enhancement)
Palette
11 kinds of color available (rust, rainbow, white/black, etc.), customizable
Network
Network protocol
TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, IGMP, 802.1X, ONVIF (Profile S)
Video compression
H.264
Video preview connections
Max. 16 at same time
Number of users; authority
Max. 10 users
Temperature measurement
Object temperature range
-20°C to 150°C, 0°C to 400°C (to 800 °C for advanced version, customized up to 2000°C max)
Accuracy
±2°C or 2% of reading (for maximum)
Measurement regime
Supports global, point, line, box temperature measurement method
Raw file output
Support
Interface
Network
1*RJ45x110M / 100M self-adaption Ethernet port
Analog video output
CVBS (75Ω) PAL
Serial port
1*RS232, 1*RS485
Alarm switch
Input x1, output x1
Storage interface
Micro-SD (TF) storage Card, max. 64G
General parameter
Working temperature
-20° C~+50° C
Storage temperature
-45°C~+65°C
Humidity
≤90% RH
Input voltage
DC: 12V(+9V~+15V)
Power consumption
<3W

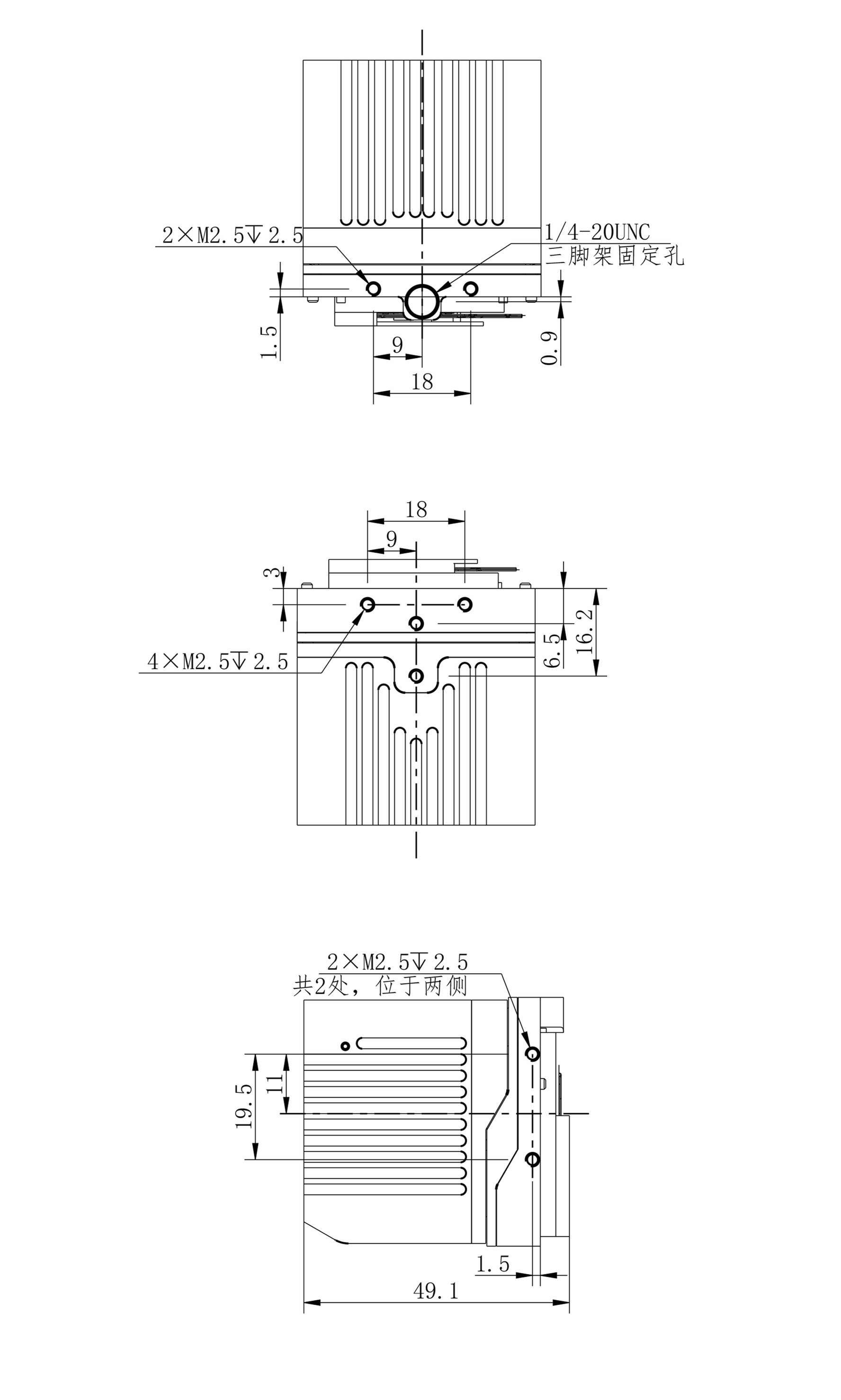

Size
50mmx 44 mmx46 mm (without lens)
Weight
<110 g (without lens)
