Model
M500/M500C

Item specifics

Detector Type
FPA
Resolution / Pixel Spacing
640x480/17um
NETD
≤50mk@300k
Instantaneous boot
<4s
Working Temperature
-20℃~+55℃
Weight
40g

Product review

Description

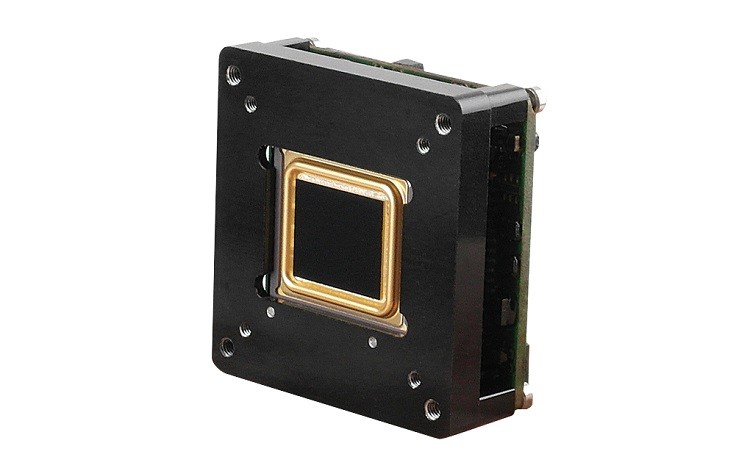

M500/M500C


Blink surveillance cameras High Resolution Imaging Module



1.No shutting non-uniformity calibrating technology (NST)

2.Super low power consumption:<1.2W

3.Instantaneous boot:< 4S

4.Low working voltage: 2.5V~5.5V

5.Small size and light weight

6.High performance of temperature impact and environmental adaptability

Technical Datasheet:

Items/Technical specification
M502/M502C
Detector characteristic
Detector
Uncooled Microbolometer FPA (Amorphous Silicon)
Array format/ Pixel pitch
640× 480/17μm
Sensitivity
≤50mk@300K
Frame rate
50Hz
Spectral range
8~14μm
Image processing
Nonuniformity calibration
No shutting technology
Instantaneous boot
<4s
Noise reduction
Digital filter
Image definition
768x576 640x480
Image frame rate
50Hz (PAL)/60Hz (NSTC)
Lens
Optional 19mm, 40mm, 50mm, 75mm, 100mm, 150mm
Please consult us for more lens options and details
Thermal imaging adjustment
Pseudo color 9 Pseudo color palettes
9 Pseudo color palettes changeable
Polarity
White hot/Black hot
Mirror image
Horizontal/Vertical
Image zoom
x2
x4
Manual gai
Cycle adjustment
Auto gain
Auto adjustment
Power
Working voltage range
DC: +2.5V~+5.5V
Typical working voltage
DC: +3.6V
Power consumption
<0.9W <1.2W
Reverse voltage protection
Yes
Over/Under-voltage Protection
Yes
Environmental parameter
Working temperature rang
-20℃~+60℃ (Typical); -40℃~+60℃ (Special)
Storage temperature range
-45℃~+65℃
Humidity
5%~95% Non-condensing
Vibration
GJB 150-162.3.1
Shock
GJB 150-18 Test 7 100g/6ms
Anti-temperature impact
5℃/min(-40℃~+60℃)
Physical parameter
Weight
<40g
Dimension
42.5mmx41mmx20mm/42.5mmx51mmx20mm
Interface
Power port
Yes
Serial port
RS-232
Analog video output
BNC (75Ω); Support two-way composite video
Digital video output (Customizable)
14Bit(50Hz)
Keyboard
4 button keyboard
