IR fixed Bullet IP Camera temperature monitoring camera
- Model
- HE-325-T
Item specifics
- Weight
- ＜ 1.2kg
- Size
- 293mmx88mmx80mm
- Power consumption
- <6W
- Humidity
- ≤90% RH
- Storage temperature
- -45°C~+65°C
- Serial port
- 1*RS485
- Target temperature range
- -20ºC~+150ºC, 0ºC~+400ºC upgradable
- Accuracy
- ±2°C or 2% of reading (for maximum)
Review
Description

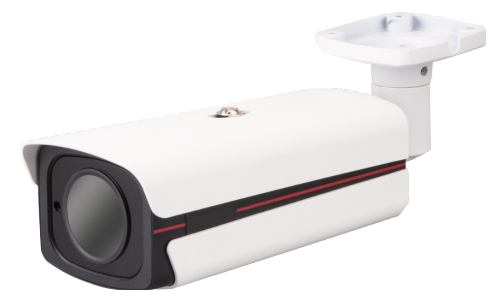

Bullet Thermal Camera – Temperature measurement camera
HE-326-T / HE-625-T
● Support
temperature abnormal detection
● Support alarm
out linkage
● IP66
protection, integrated structural design, wall-mounting bracket available for
standard configuration; PTZ platform and ceiling mount are optional, applied both
in indoor and outdoor.
● Powered
by complete functions and interfaces; standardized security interface design;
ONVIF & GB28181 compliant, easily access to the platform
● Applicable
under extreme bad weather (including complete darkness, rain, snow, smog and
etc.) Ge glass optional
Technical Specification
Items/Technical specification | HE-325-T | HE-625-T |
Detector characteristic | ||
Detector | Uncooled Microbolometer FPA (Amorphous Silicon) | |
Array format/ Pixel pitch | 384x288/17um 640× 480/17μm | |
Sensitivity | ≤50mk＠300K.F1 | |
Spectral range | 8~14μm | |
Focal length | Standard:10mm，Optional: maximum 25mm | |
Focus | Athermalized
lens, focus free | |
Palette | 11
kinds of color for choose (including rust,rainbow,white/black ect.,) palette
color customizable | |
Target
temperature range | -20ºC~+150ºC,
0ºC~+400ºC upgradable | |
Accuracy | ±2℃ or ±2% of reading for
maximum | |
Measurement
regime | Supports
global, point, line, box temperature measurement method | |
General parameter | ||
Network
Protocol | TCP/IP,ICMP,HTTP,DCHP,DNS,RTP,RTSP,RTCP,IGMP,802.1X,
ONVIF Profile S | |
Network
Interface | RJ45
self-adaptation ethernet port | |
|
Video
compression
|
H.264/H.265 GPEG |
|
|
Analog
Video output
|
CVBS*1
|
|
|
Alarm
switch
|
Output
x 1
|
|
Serial
port | 1*RS485 | |
Input
voltage power | DC12V,6W | |
Working
temperature | -20℃~50℃ Humidity ＜90%RH | |

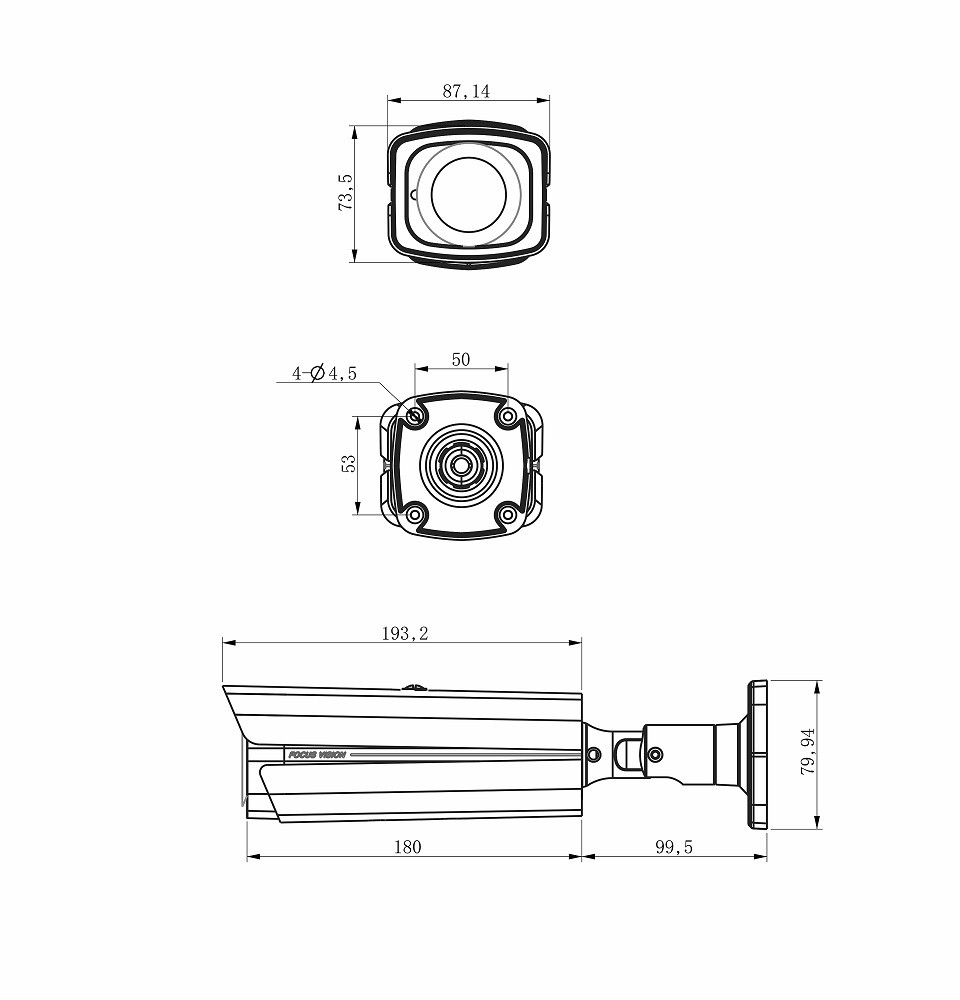

Size | 293mmx88mmx80mm | |
Weight | 1.2kg | |
IP
rating | IP66 | |
