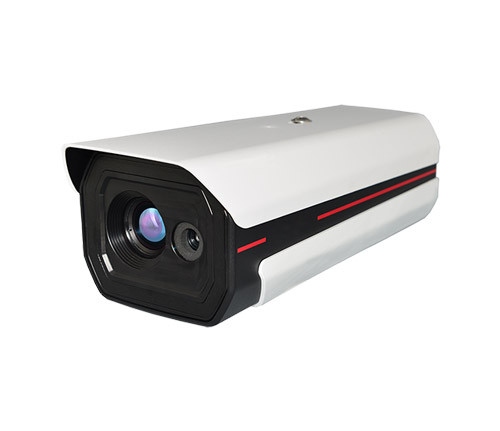

Mini wifi network smart bullet camera
Mini wifi network smart bullet camera
Mini wifi network smart bullet camera
Mini wifi network smart bullet camera
Model
HD-326-T

Item specifics

Weight
< 1.8kg
Size
256mmx121mmx100mm
Power consumption
<6W
Humidity
≤90% RH
Working temperature
-20°C~+50°C
Serial port
1*CVBS
Target temperature range
-20ºC~+150ºC, 0ºC~+400ºC upgradable
Accuracy
±2°C or 2% of reading (for maximum)

Product review

Description

Two Lights Bullet Thermal Camer-Infrared Temperature  camera



HD-326-T / HD-625-T

Support temperature abnormal detection


● Support alarm out linkage


IP66 protection, integrated structural design, wall-mounting bracket available for standard configuration; PTZ platform and ceiling mount are optional, applied both in indoor and outdoor.



Powered by complete functions and interfaces; standardized security interface design; ONVIF & GB28181 compliant, easily access to the platform



Technical Specification

Items/Technical specification
HD-325-T
HD-625-T
Detector characteristic
Detector
Uncooled Microbolometer FPA (Amorphous Silicon)
Array format/ Pixel pitch
384x288/17um   640× 480/17μm
Sensitivity
≤50mk@300K.F1
Spectral range
8~14μm
Focal length
Standard:10mmOptional: maximum 25mm
Focus
Athermalized lens, focus free
Palette
11 kinds of color for choose (including rust,rainbow,white/black ect.,) palette color customizable
Target temperature range
-20ºC~+150ºC, 0ºC~+400ºC upgradable
Accuracy
±2 or ±2% of reading for maximum
Measurement regime
Supports global, point, line, box temperature measurement method
General parameter
Network Protocol
TCP/IP,ICMP,HTTP,DCHP,DNS,RTP,RTSP,RTCP,IGMP,802.1X, ONVIF Profile S
Network Interface
RJ45 self-adaptation ethernet port
Video compression

H.264/H.265 GPEG
Analog Video output
CVBS*1 PAL
Alarm switch
Output x 1
Serial port
1*RS485
Input voltage power
DC12V,6W
Working temperature
-20~50  Humidity 90%RH

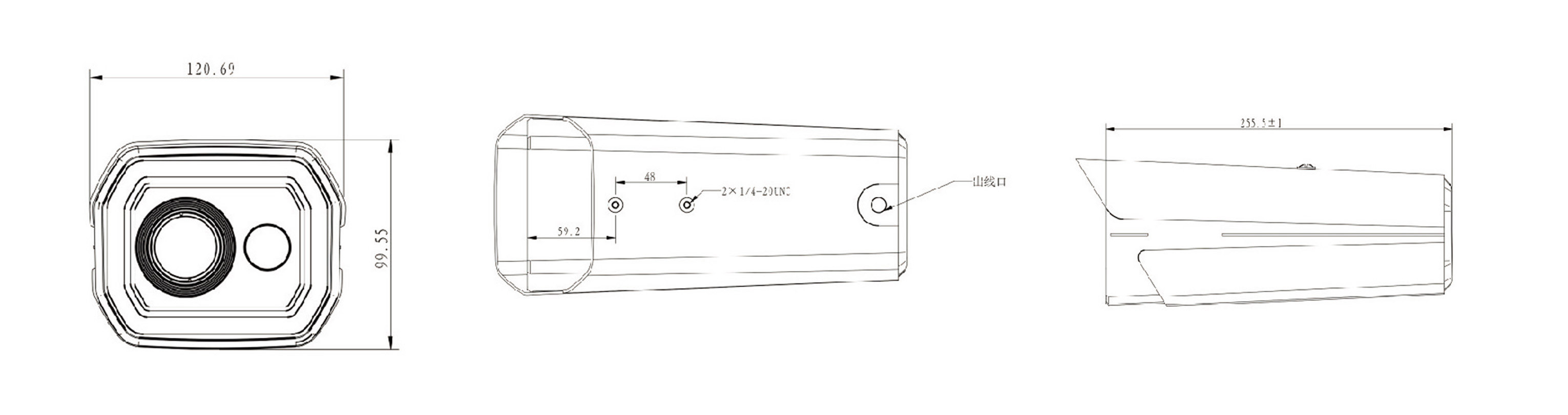

Size
256mmx121mmx100mm
Weight
1.8kg
IP rating
IP66
