Model
cyclops 325

Item specifics

Detector Type
Vox Microbolometer

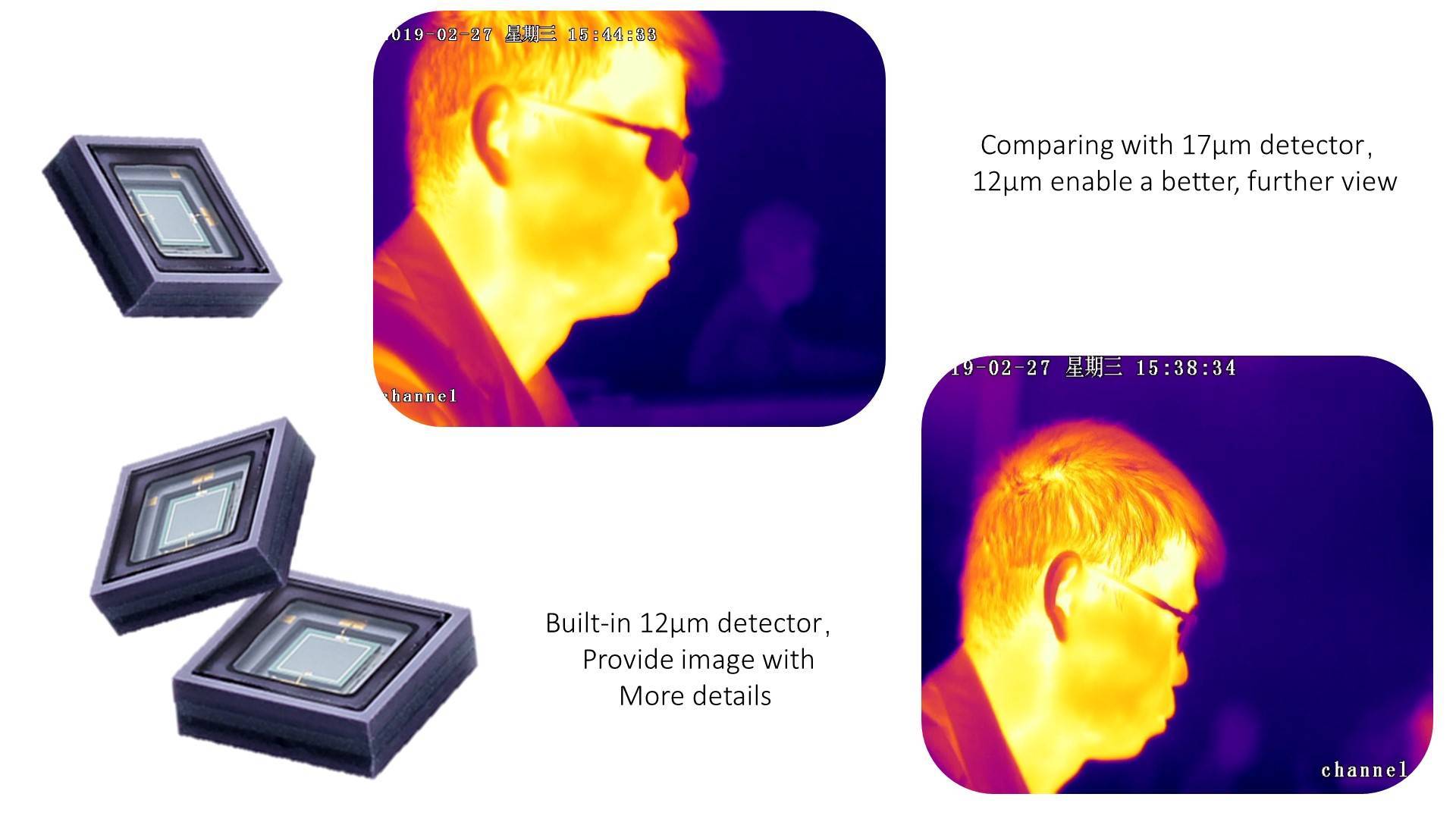

Resolution / Pixel Spacing
384x288/12um
NETD
≤40mk@300k
FOV
10.5°x 7.9°
Diopter Control
-5~+5
Working Temperature
-20℃~+55℃
Size
67mm×63mm×190mm
Weight
470g (with battery)

Product review

Description

Cyclops 325

Thermal vision camera,thermal monocular

Product Features

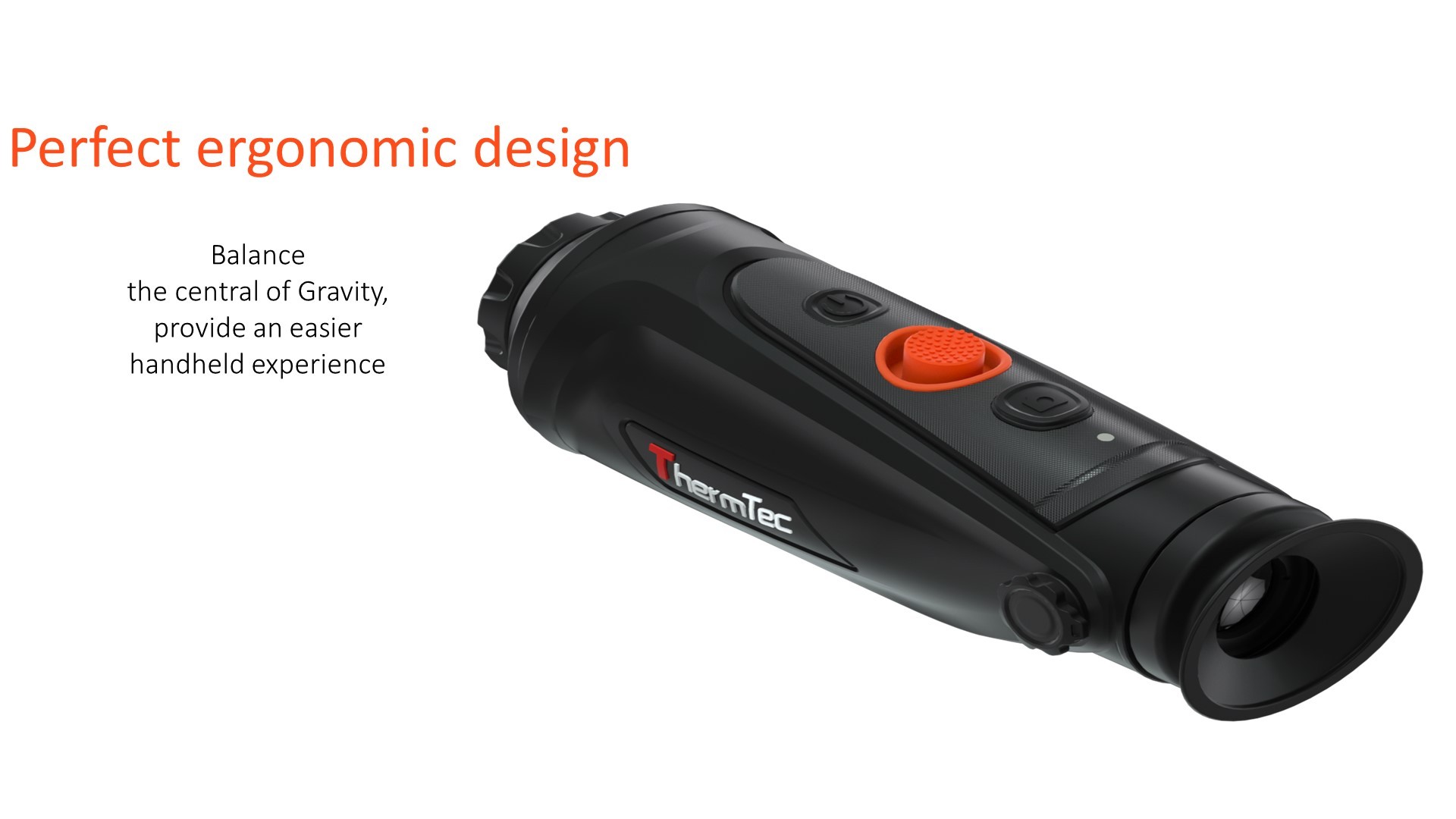

◆  small pocket size and ergonomic design, allows you to scan vast areas for long period of time without any pressure
◆   Wi-Fi for remote control, to display synchronously, take photos and  videos
◆   Built-in battery life up to 10h, can record your every moment
◆   Easy operation with only three buttons Silent and lightproof design to prevent exposure

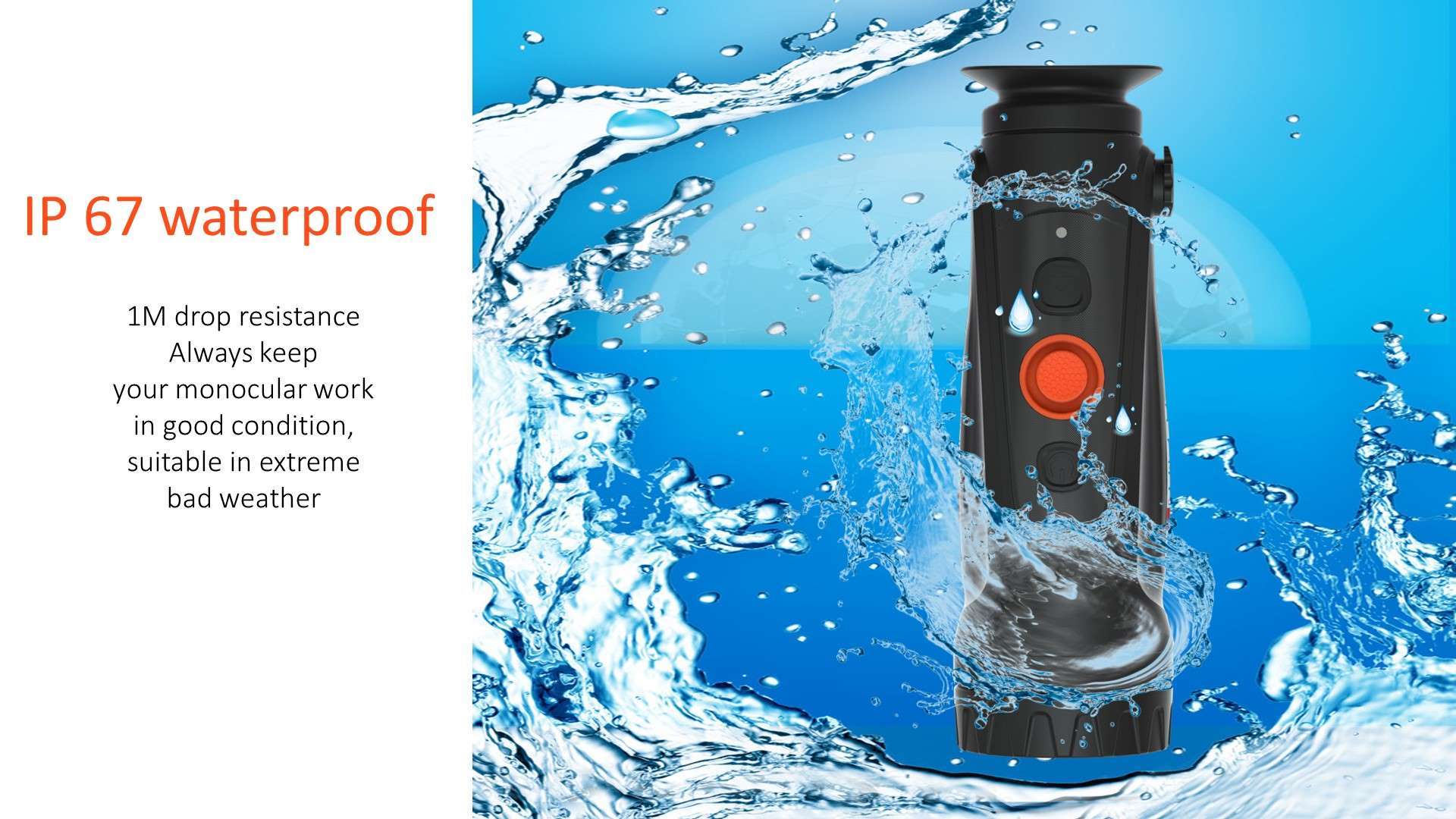

◆   IP67 protection and 1m drop test passed to suit the wild

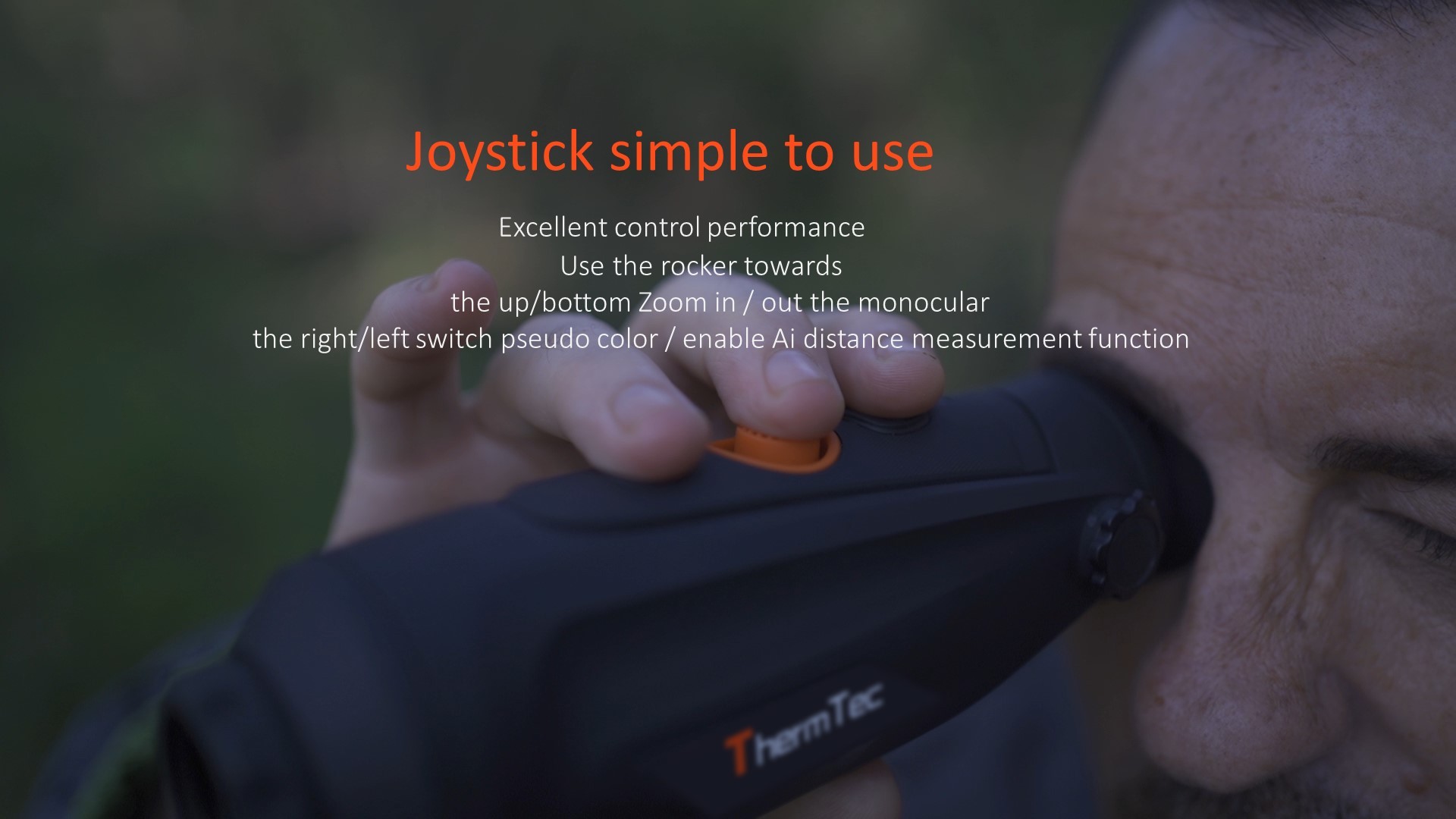

joystick operation
clear thermal imaging

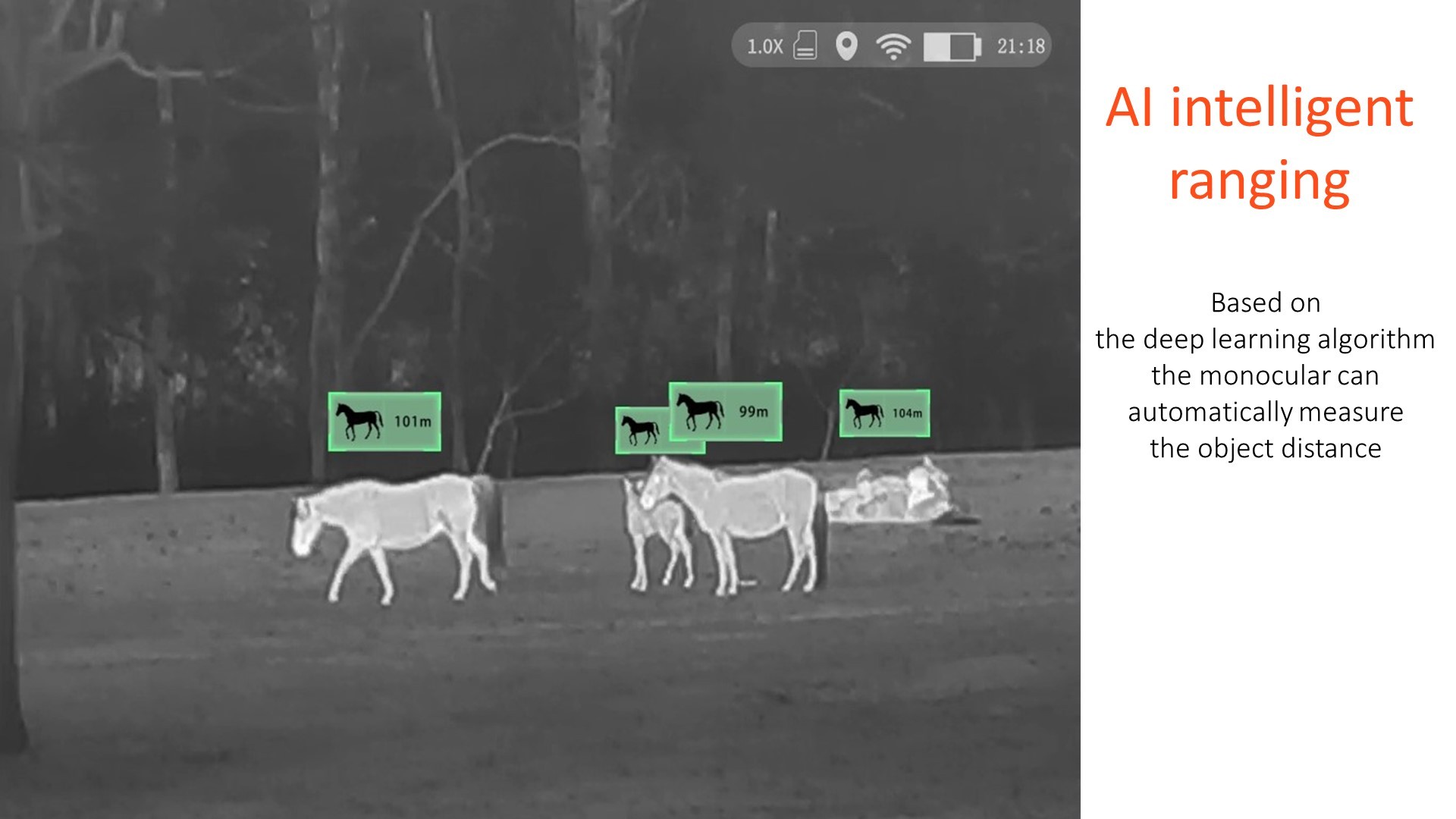

AI distance measurement
OLED display
thermal image pallet
waterproof monocular
zoom thermal camera

Technical Datasheet:

Sensor Parameters

Items / Specification
cyclops 325

Detector Type

Vox Microbolometer

Resolution / Pixel Spacing

384x288/12um

NETD

≤40mk@300k

Frame Rate

50Hz

Spectral Range

8~14μm

Lens

25mm (F#1.0, manual focus)

FOV

10.5°x 7.9°

Image Processing

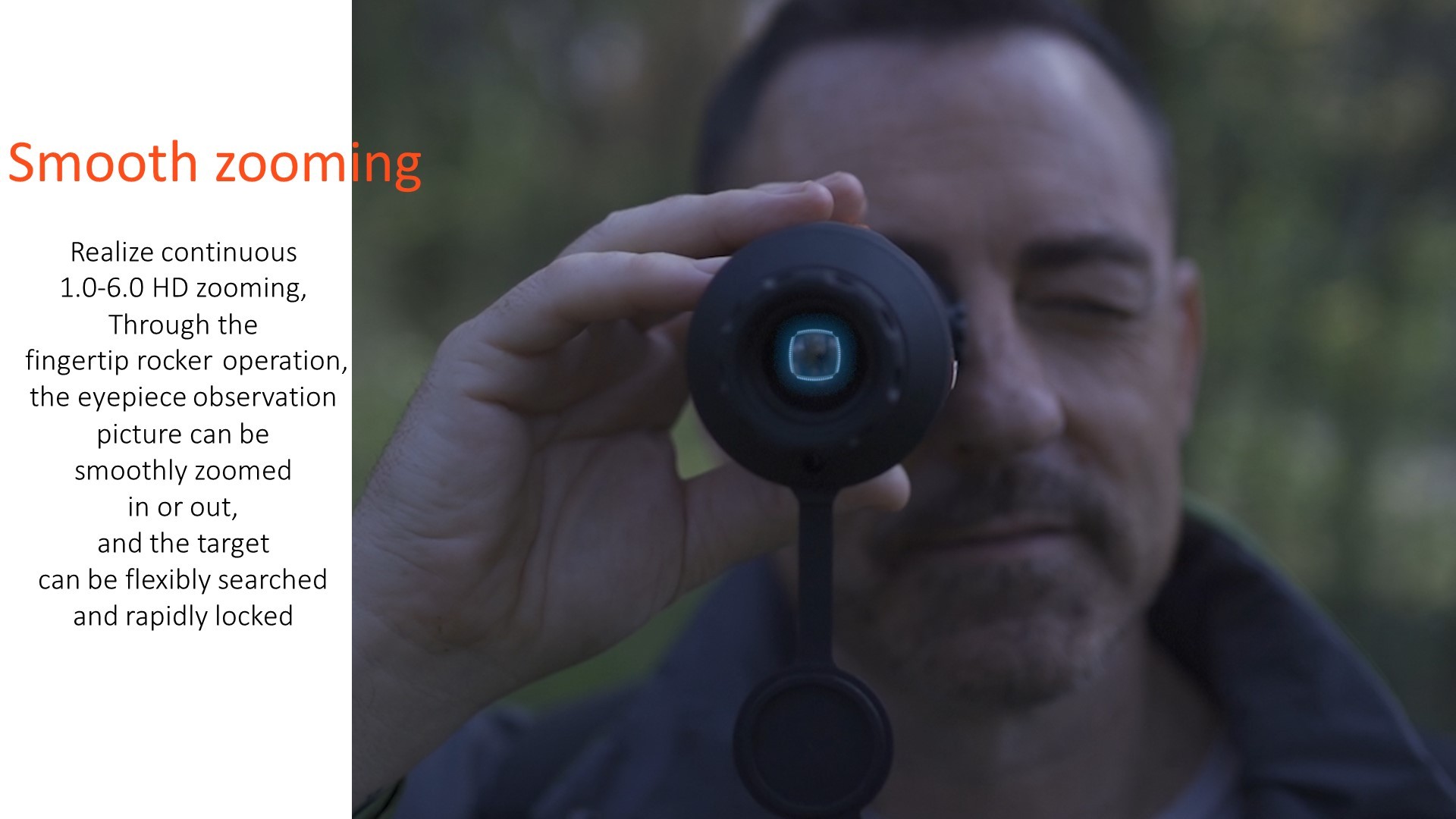

Digital Zoom

1~6x continuous

Color Palette

5+

Noise Reduction

3D noise reduction

Image Enhancement

IDE、HDR

Display

OLED

0.39 inch,1024×768 resolution

Diopter Control

-5~+5

Eye Distance

40mm

Function

OLED

8 modes

Language

English

Reticle

6+, adjustable coordinates
Memory Card
16G

Heat Track

Yes

AI Distance Measurement

Yes
Laser Indicator
Yes

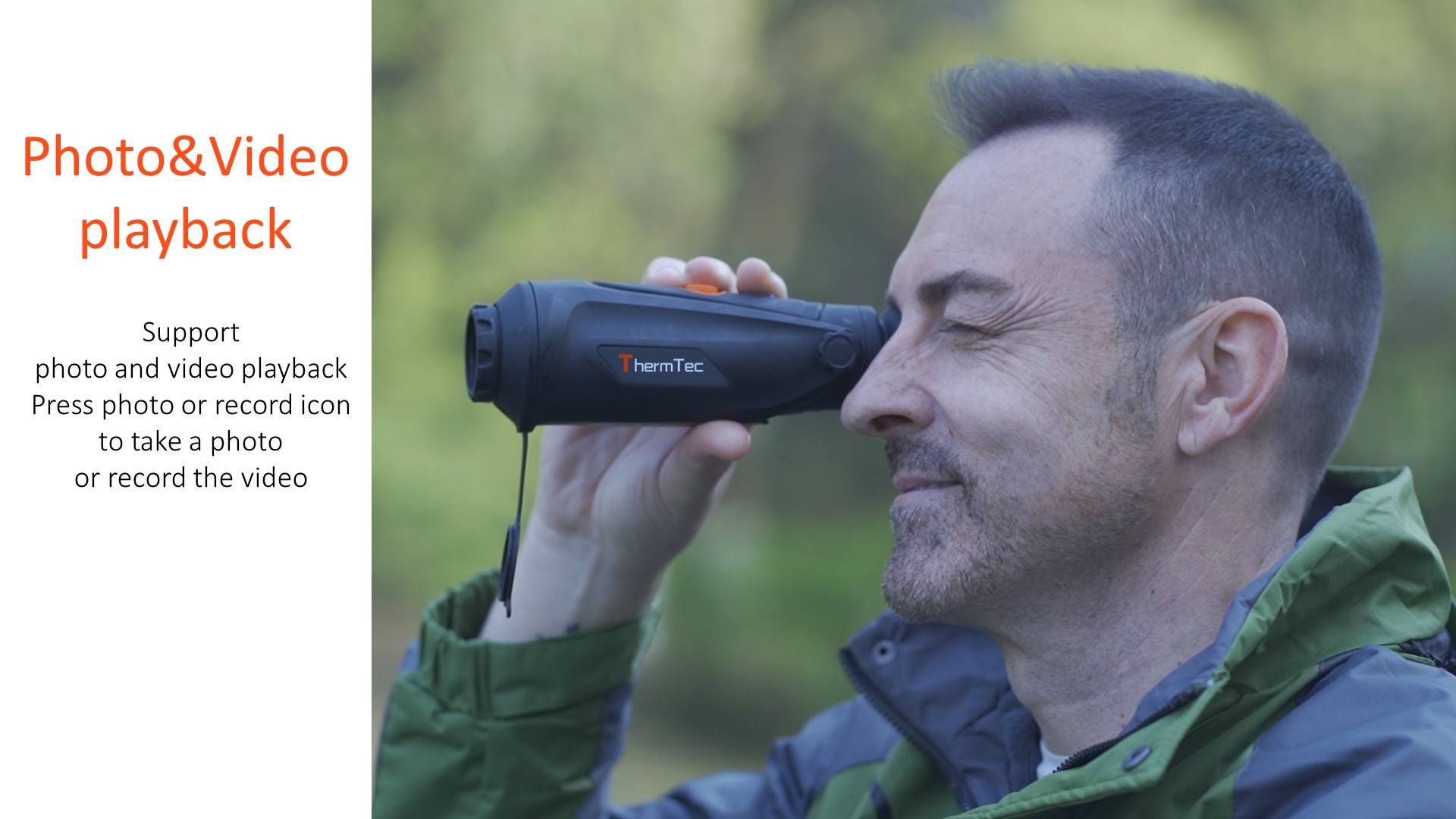

Photo, Record, Playback

Yes

GPS

Yes

Power

Battery Type

Internal Li-Ion Cell(18650 Li battery x 2)

Battery Life

Continuous working time≥ 12h
Interface

Type-C

Power charge, read data, output analog video

WI-FI

Two-way Wi-Fi connection, APP remote control

Environmental Parameters

Working Temperature

-20℃~+55℃

Protection Level

IP67,1 meter drop resistance

Physical Parameters

Weight

470g (with battery)

Size

67mm×63mm×190mm

Accessories

External Cable

Analog video cable, USB data cable

Other Accessory

Wrist strap, plush bag, user manual
