Model
ZS-E3100/E6100

Item specifics

Detector type
Uncooled Microbolometer FPA
Video Output interface
Ethernet & Female BNC
Platform compatibility
ONVIF, GB28181 compliant
Network interface
PELCO-D, PELCO-P etc
Baud rate
2400/4800/9600/19200bps
Network protocol
PELCO-D, PELCO-P etc
Size(L×W×H)
521mm×380mm×316mm
IP rating
IP66
Weight
25Kg

Product review

Description

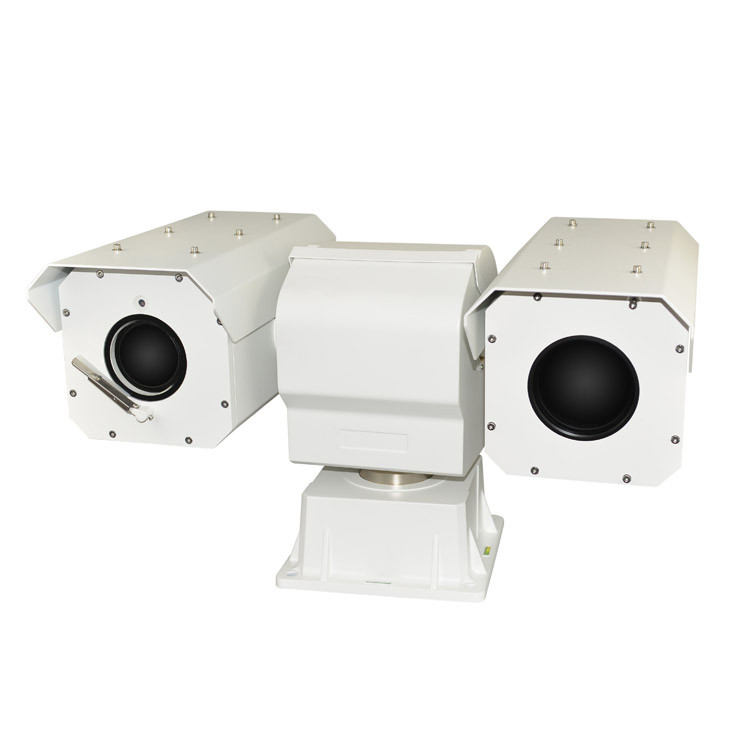

ZS-E3100/E6100

forest fire prevention IR thermal camera

1. Built in high sensitivity infrared thermal imaging camera with large aperture lens, and ultralow illumination integrated HD IPC, all have been carried over a 360° medium-size omnidirectional PTZ platform; supports medium and long range fast search and monitoring

2. Powerful embedded intelligent analysis algorithm makes motion detection, region intrusion detection, line crossing detection, moving path tracking, target enhancement and other intelligent analysis functions done in the device

3. Leading thermal imaging procession algorithm: IDE (image details enhancement algorithm), HDR (high dynamic range algorithm: sea-sky mode, sky-earth mode)

4. Embedded high temperature alarm module, it can accurately pre-alarm the fire source in time based on the leading temperature alarming algorithm, the pre-alarming grades are adjustable, applicable for the need of fire pre-alarming in different scenes

5. Applicable under extreme bad weather (including complete darkness, rain, snow, smog and etc.)

6. Powered by a set of complete functions and interfaces; standardized security interface design; ONVIF compliant, easily access to the platform

Technical Specification

Items/Technical specification

ZS-E3100

ZS-E6100

Detector characteristic

Detector type

Uncooled amorphous silicon FPA

IR Resolution/Pixel pitch

384x288/17μm           640x480/17μm

Sensitivity (NETD)

50mk

Frame rate

25Hz

Spectral range

8~14μm

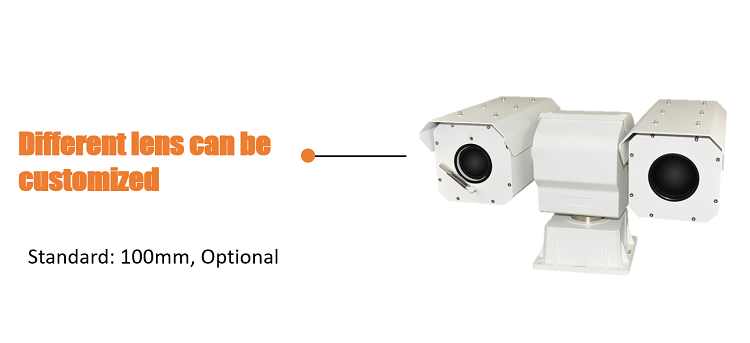

Focal length

100mm, other options customizable

Focus

Electromotion focus, support focus free

Digital zoom

1~8x continuous

Thermal image process algorithm

IDE, HDR

Thermal image Intelligence function*

Motion detection, Intrusion, Moving path, Target enhancement ( customizable )

High-temperature alarm

High-Temperature tracking, Over-temperature alarm

Visible camera specification

Matrix type

1/1.9 inch CMOS

Effective pixels

1920(H)×1080(V)

Optical

Focal length: 6~210mm, 35× optical zoom, other options customizable

FOV

56°~1.8° (wide end ~ tele end)

F-number

F1.4~F4.5

Minimum Illumination

Color:0.05Lux@(F1.6, AGCON)

B/W

0.01Lux@(F1.6, AGCON)

Video compression

H.264/MJPEG

Video output bit rate

32Kbps-16Mbps

Video preview

Support preview by IE explorer, PC client

Camera technical specification

Pan/Tilt speed

Pan: 0.01°~60°/s max, Tilt: 0.01°~30°/s max

Pan/Tilt Range

Pan: 360° continuous, Tilt: 90° (-45°~+45°)

Focal length speed

Automatic adjustment based on the different focal length

Network protocol

PELCO-D, PELCO-P etc

Programmable Preset

200

Scan and patrol

Preset patrol / Auto line scanning & etc.

PTZ Watching

1 preset point / auto patrol line/auto scanning line

PTZ Angle function

Angle control and angle value return

Angle control and angle value return

Ethernet port & female BNC

Network interface

RS485 / RS422 (optional)

Platform compatibility

ONVIF, GB28181 compliant

Network interface

PELCO-D, PELCO-P etc

Baud rate

2400/4800/9600/19200 bps

Operating temperature

-25℃~+55℃

Humidity

≤90%RH

Input voltage/Power consumption

AC24V / DC24V,≤100W

Weight

25Kg

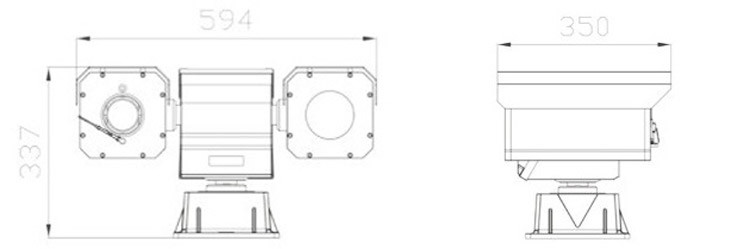

Size(L×W×H)

594mm×350mm×337mm

IP rating

IP66
