telescope monocular compact size thermal scope cyclops 315
telescope monocular compact size thermal scope cyclops 315
telescope monocular compact size thermal scope cyclops 315
telescope monocular compact size thermal scope cyclops 315
telescope monocular compact size thermal scope cyclops 315
telescope monocular compact size thermal scope cyclops 315
Model
cyclops 315

Item specifics

Detector Type
Vox Microbolometer
Resolution / Pixel Spacing
384x288/12um
NETD
≤40mk@300k
FOV
10.5°x 7.9°
Diopter Control
-5~+5
Working Temperature
-20℃~+55℃
Size
67mm×63mm×190mm
Weight
470g (with battery)

Product review

Description

Cyclops 315

Thermal imaging scope, game camera

        Product Features

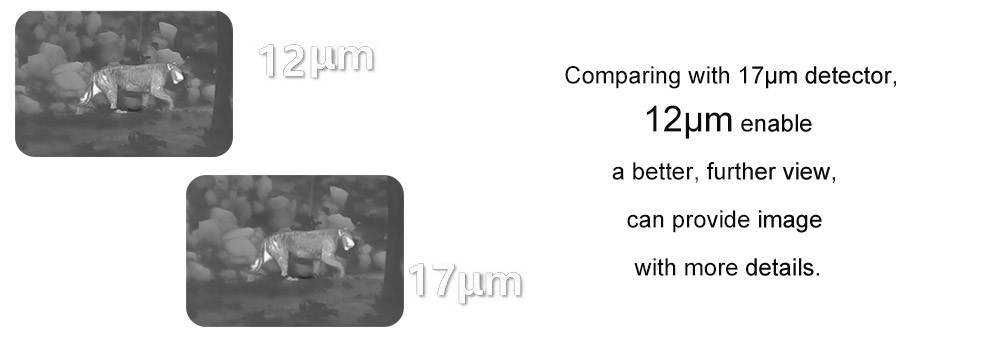

             1. 12μm Vox detector: Comparing with 17μm, 12μm enables a better, further view,  also provides images with more details;

             2. AI distance measurement: Automatically measure distance;

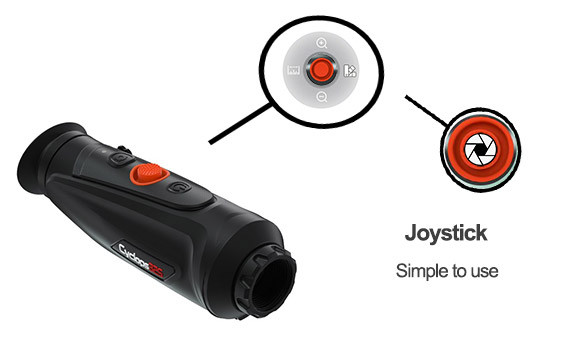

             3. Joystick: Simple to use (Joystick= 5keys: up/down/right/left/ok);

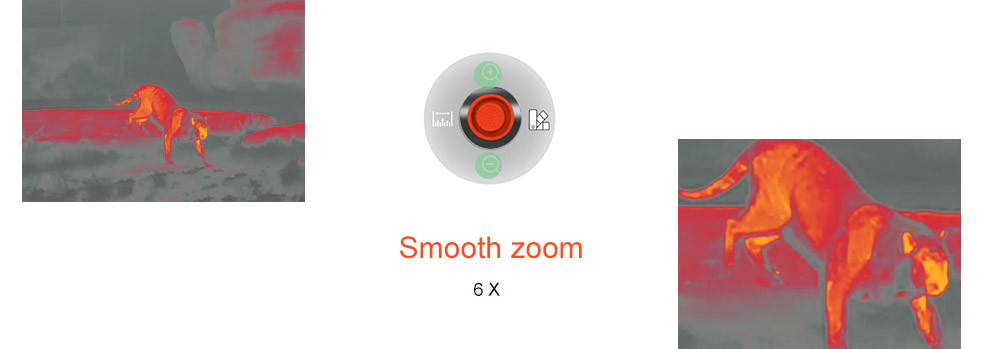

             4. Smooth zoom

             5. Two-way Wi-Fi connection: Enable to see the live views from the monocular on a smartphone by using App, also                                  synchronizes the real-time share with another smartphone/PC via internet;

             6. Perfect ergonomic design: Balance the centra of gravity, provide an easier hand-held experience;

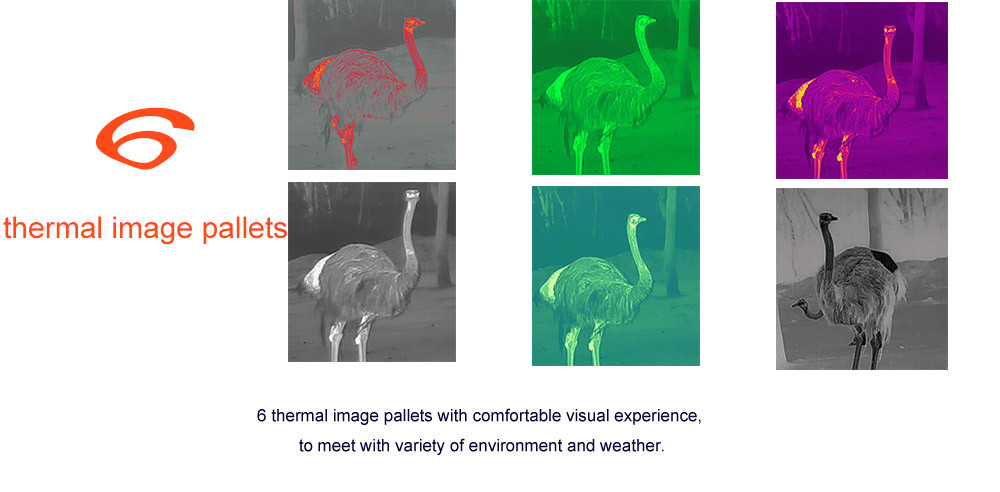

             7. 6 thermal image pallets with comfortable visual experience, to meet with variety of environment and weather;

             8. IP67 Waterproof, 2m drop resistance;

             9. 12H super long standby

monocular scope
game camera
multi-function monocular
thermal vision monocular
day and night monocular
anti-drop thermal monocular
monocular telescope

Technical Datasheet:

Sensor Parameters

Items / Specification
Cyclops315

Detector Type

Vox Microbolometer

Resolution / Pixel Spacing

384x288/12um

NETD

≤40mk@300k

Frame Rate

50Hz

Spectral Range

8~14μm

Lens

15mm (F#0.9, manual focus)

FOV

17.5°x 13.1°

Image Processing

Digital Zoom

1~6x continuous

Color Palette

5+

Noise Reduction

3D noise reduction

Image Enhancement

IDE、HDR

Display

OLED

0.39 inch,1024×768 resolution

Diopter Control

-5~+5

Eye Distance

40mm

Function

OLED

8 modes

Language

English

Reticle

6+, adjustable coordinates
Memory Card
16G

Heat Track

Yes

AI Distance Measurement

Yes
Laser Indicator
Yes

Photo, Record, Playback

Yes

GPS

Yes

Power

Battery Type

Internal Li-Ion Cell(18650 Li battery x 2)

Battery Life

Continuous working time≥ 12h
Interface

Type-C

Power charge, read data, output analog video

WI-FI

Two-way Wi-Fi connection, APP remote control

Environmental Parameters

Working Temperature

-20℃~+55℃

Protection Level

IP67,1 meter drop resistance

Physical Parameters

Weight

450g (with battery)

Size

67mm×63mm×190mm

Accessories

External Cable

Analog video cable, USB data cable

Other Accessory

Wrist strap, plush bag, user manual
Product Application
