Model
DP3V

Item specifics

Detector
VOX
Resolution/Pixel Spacing
384×288
Temperature Resolution
<0.06°C(@30℃)
Spectral Range
7.5-14μm
Standard Lens
24°
Temperature Range
-20°℃~150°C, 0°C~ 410℃
Laser
Support

Product review

Description

Technical Specification
Name/Property
DP3V
Detector
VOX
Resolution
384×288
Standard Lens
24°,optional
Spectral Range
7.5-14μm
Thermal sensitivity
<0.06°C(@30℃)
Temperature measurement range
-20℃ to 450℃ (-4°F to 854°F)
Optional temperature measurement range
+300℃~+650℃,+300℃~+2000℃
Measurement accuracy
±2℃ or ±2% of reading
Digital camera
2560x1920,with led light
Laser
Support
Focus mode
Manual,motorized,auto-focusing

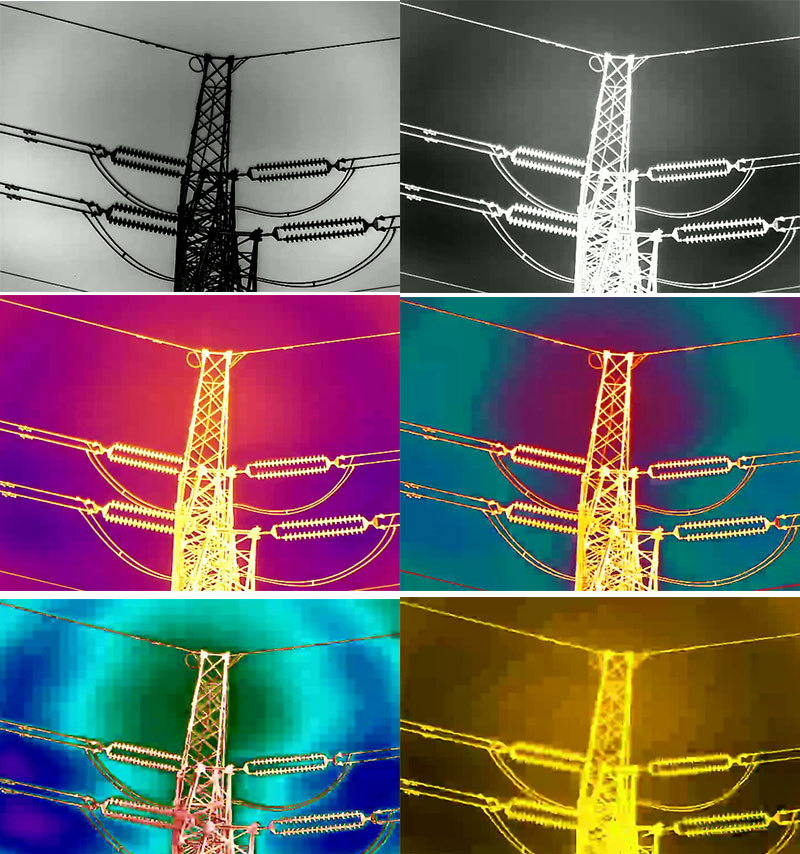

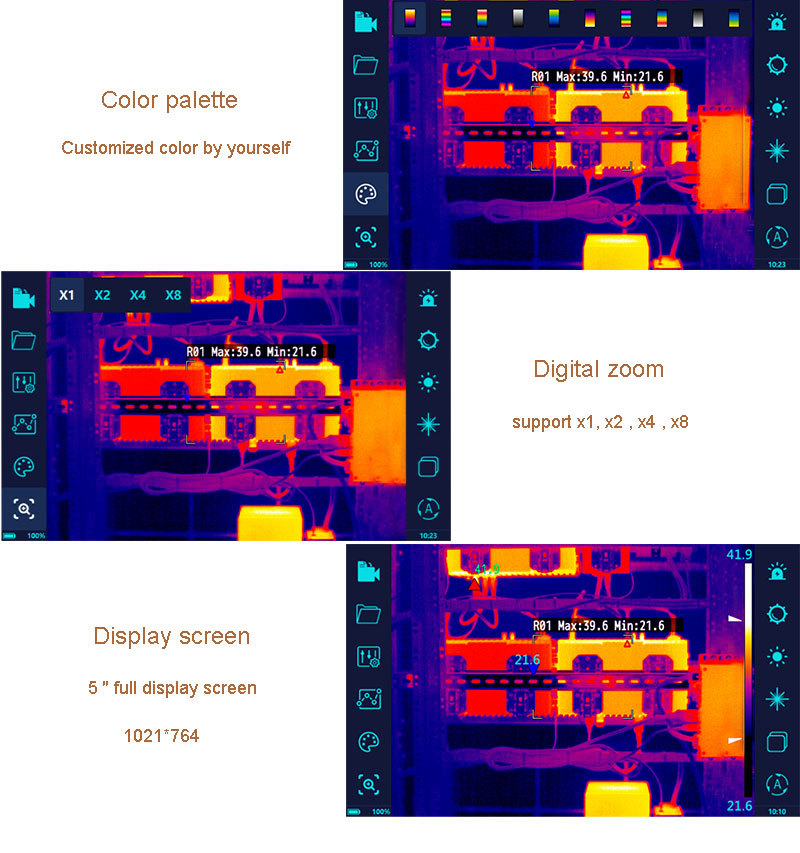

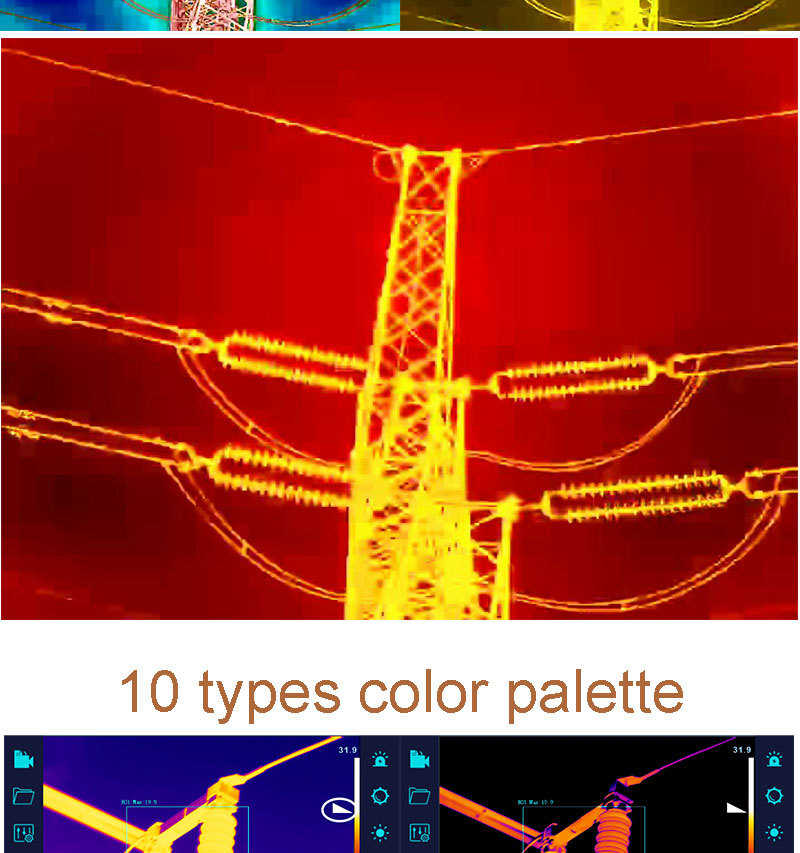

Color palette
Rainbow, iron oxide red, cold color,
black & white, white & black etc.10 types
Display screen
5 ″ full display screen 1021*764
Measurement regime

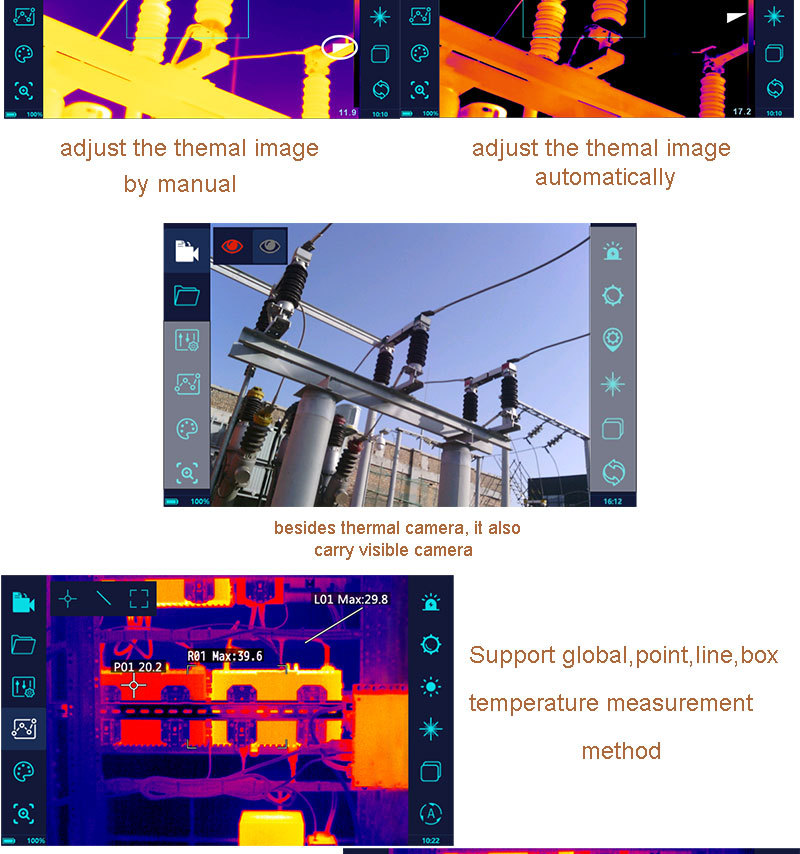

Support global,point,line,box temperature measurement method
High temperature alarm
High temperature tracking, low temperature tracking
Digital zoom
x1,x2,x4,x8
Picture in picture
Support
4G
Support
GPS
Support
Storage medium
Built-in 32G SD (above 4 thousand thermal image stored)
File format
JPG,PNG
Video format
H264
Video output
HDMI
Video interface
Micro HDMI
Power supply
Removable rechargeable 26650 battery
Power
DC 12V
Battery working time
>2 hours, support sleep mode
Product size
260mm×135mm×136mm
Weight
1.17kg ( including battery )
Working temperature
-20℃to 55℃
Storage temperature
-40℃ to 70℃
Humidity
< 95%RH, no condensation
