High quality professional night vision goggle for firefighter and police ZSHT600
High quality professional night vision goggle for firefighter and police ZSHT600
High quality professional night vision goggle for firefighter and police ZSHT600
High quality professional night vision goggle for firefighter and police ZSHT600
Model
ZSHT600

Item specifics

Detector
Uncooled Microbolometer FPA (Amorphous Silicon)
Array format/ Pixel pitch
640x480/17μm
Sensitivity
≤50mk@300K
Spectral range
8~14μm
Image frame rate
50Hz (PAL)/60Hz (NSTC)
Weight
<600g
Screen
OLED
Working time
≥4hours

Product review

Description

ZDHT600

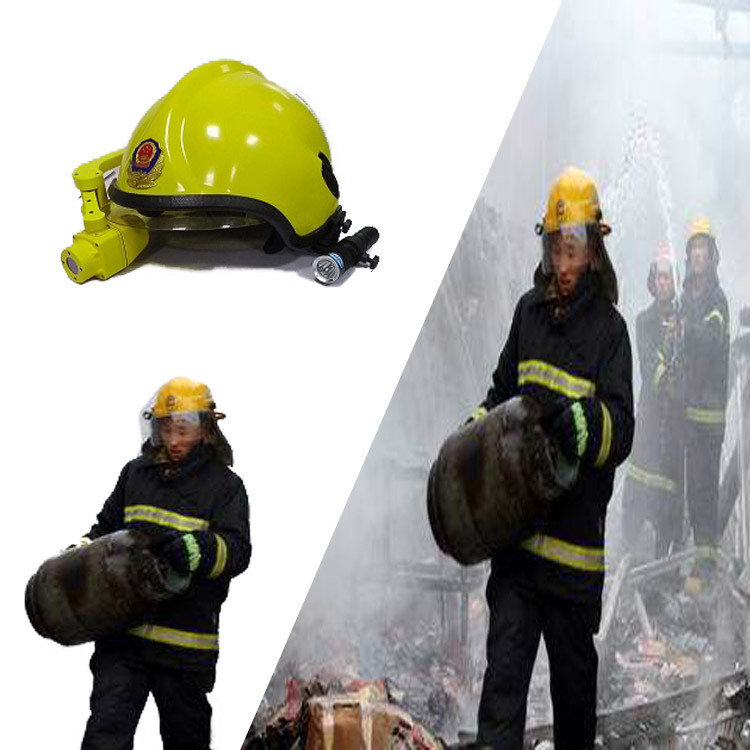

Infrared helmet night vision monocular googles



ZSHT 300 infrared helmet uses advanced infrared imaging technology, which can penetrate the smoke, dust and even dark environment of the fire scene to help fire fighters quickly discover the source of the fire and search and rescue targets, and transmit the infrared image of the scene to the command center in real time through wireless, so as to improve the efficiency of fire fighting and search and rescue, and greatly protect the personal safety of firefighters and reduce the property losses of the people.

This product adopts the independent innovation of parallax-free technology, which effectively overcomes the fire fighter's injury due to parallax misjudgment during operation, and is small in size, light in weight, does not block the line of sight, and more comfortable to wear.

Technical Datasheet:

Items/Technical specification
ZSHT600
Detector characteristic
Detector
Uncooled Microbolometer FPA (Amorphous Silicon)
Array format/ Pixel pitch
640x480/17μm
Sensitivity
≤50mk@300K
Frame rate
50Hz
Spectral range
8~14μm
Image processing
Nonuniformity calibration
No shutting technology
Instantaneous boot
<4s
Noise reduction
Digital filter
Image definition
768x576
Image frame rate
50Hz (PAL)/60Hz (NSTC)
Polarity
White hot/Black hot
Power
Battery
rechargeable battery
Battery working time
≥4hours
Charging time
<2hours
Charging temperature
0- 45
Environmental parameter
Working temperature rang
-20~+60 (Typical); 120 & 260 (Special)
Storage temperature range
-45~+65
IP rating
IP67, waterproof 1m 30mins
Drop resistance
2m
Vibration
25 g (IEC 60068-2-27)
Shock
2 g (IEC 60068-2-6)

Resistant to electromagnetic interference
RFI/EMC
Physical parameter
Weight
<600g
Display
OLED
video output
PAL/NTSC
Communication
4G/Wifi/Mesh
APPLICATION
