High sensitivity thermal security camera ir camera for indoor and ourdoor use HM335
High sensitivity thermal security camera ir camera for indoor and ourdoor use HM335
High sensitivity thermal security camera ir camera for indoor and ourdoor use HM335
High sensitivity thermal security camera ir camera for indoor and ourdoor use HM335
Model
ZS-HM335

Item specifics

Detector
Vanadium Oxide Uncooled Focal Plane Arrays
Resolution
384*288
Detector Pixel
12μm
NETD
≤ 35mK@ 25℃
Spectral Range
8~14μm
Focus
Motorized focus
Color Palettes
14 types of palette

Product review

Description

ZS-HM335

Portable Bullet Camera thermal security camera

bullet thermal camera
temperature measurement , two lights camera
different thermal lens optional

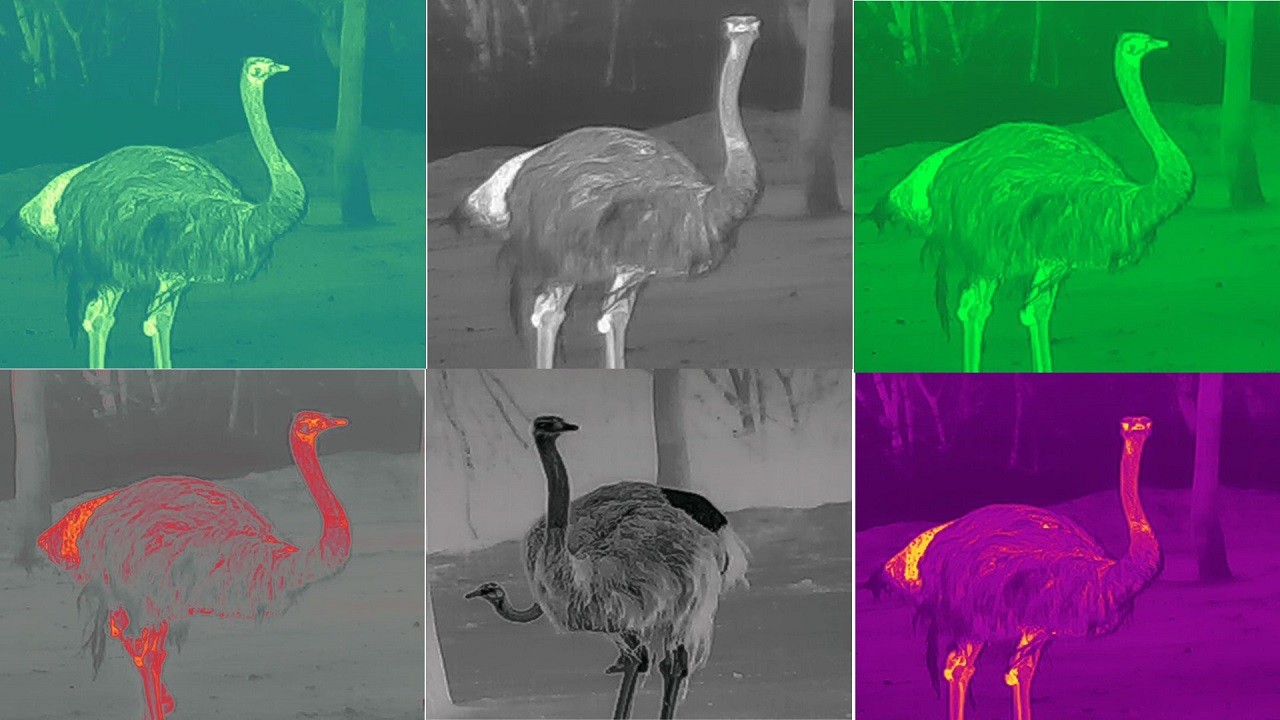

support 14 types of palette

Technical Specification

Detector characteristic

Items
HM335

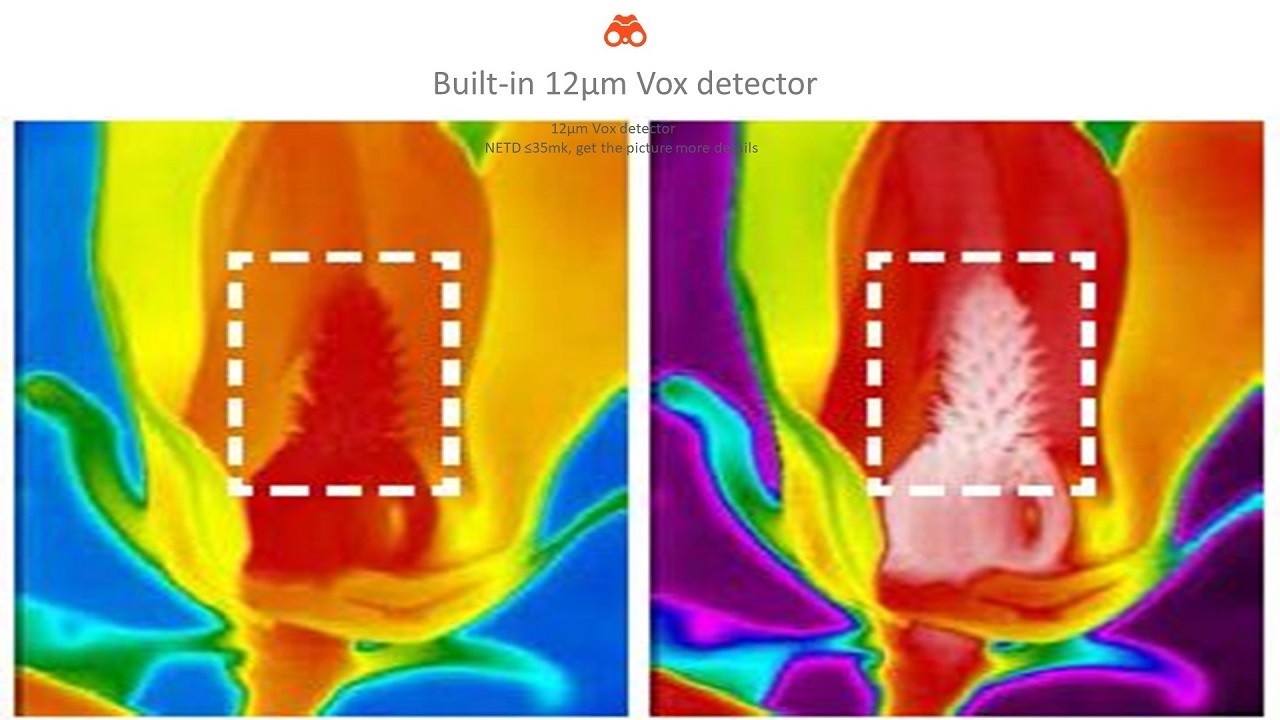

Detector

Vanadium Oxide Uncooled Focal Plane Arrays

Array format/ Pixel pitch

384x288/12m

Sensitivity

≤35mk@ 25℃

Spectral range

8~14μm

Focal length

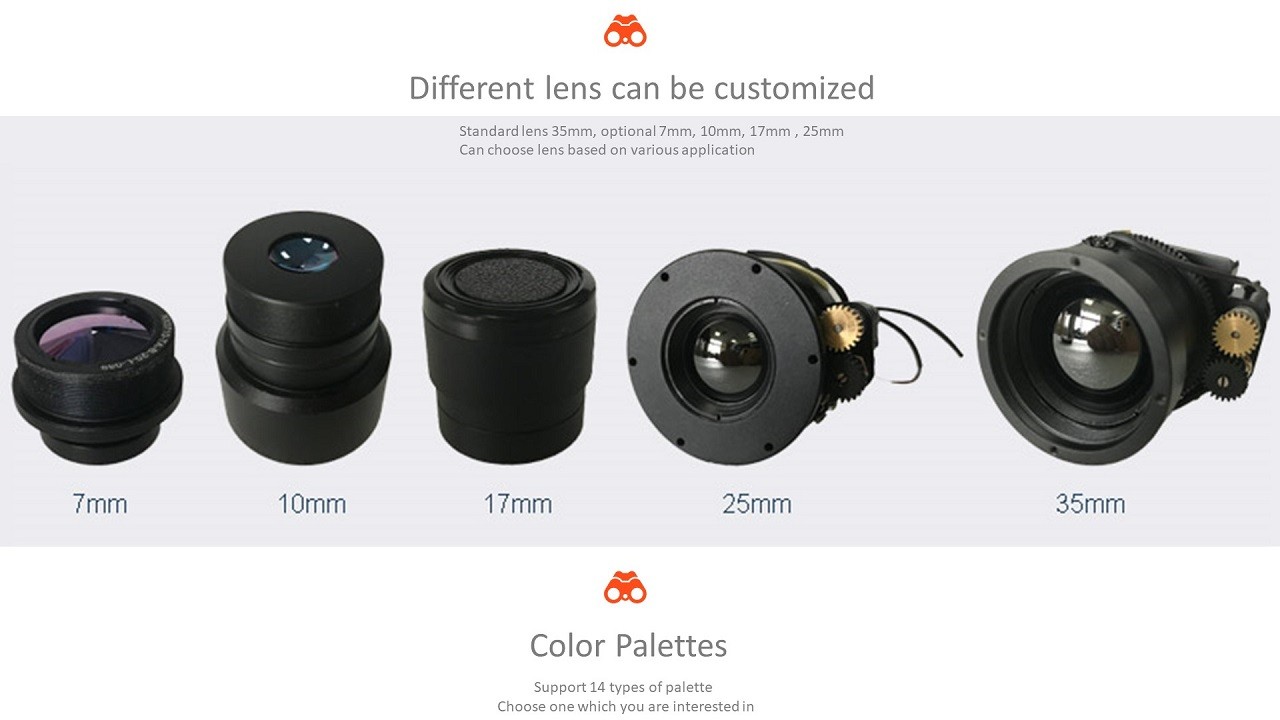

Standard:35mm,Optional:25mm,17mm,10mm, 7mm

Focus

Motorized

Color Palettes

14 types of palette

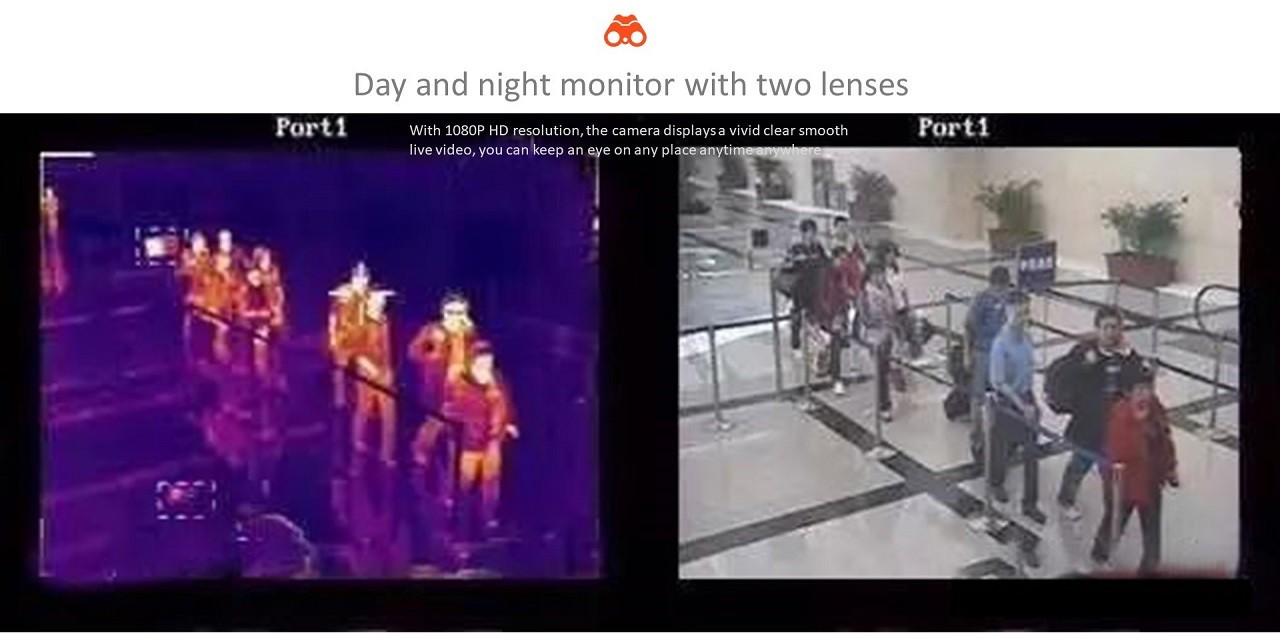

Visible camera
Image Sensor
1/2.8-in.CMOS
Resolution
1920(H)×1080(V)
Focal Length
   2.8mm 4mm 6mm 8mm(matches the size of the thermal image lens)
Image effect
Picture in picture
Display partial image of thermal channel on the full screen of optical channel
Bi-spectrum Image Fusion
Display the details of optical channel on thermal channel
Smart function
VCA
4 VCA types(motion detection, cross line, intrusion, area entry and exit), max. 10 VCA rules
AI
Human/Vehicle recognition, target locking and tracking
Against Sunburn
Support
Temperature Range
-20 °C to + 150 °C (-4 °F to + 302°F)
Temperature Accuracy
± 8 °C (± 14.4 °F)

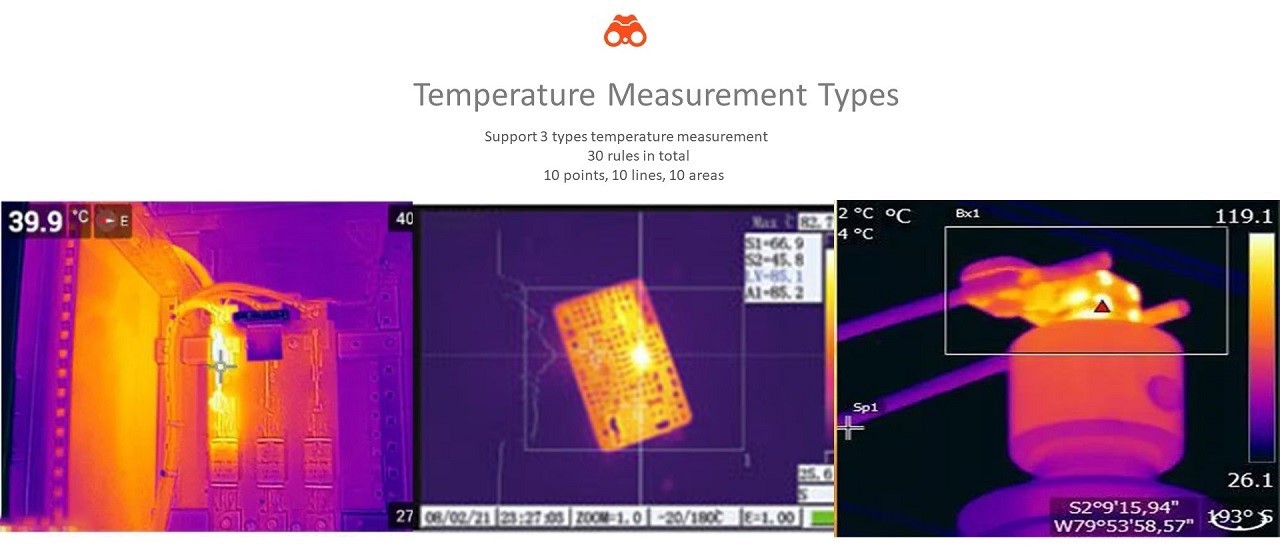

Temperature Measurement
3 temperature measurement rule types, 30 rules in total (10 points, 10 areas, and 10 lines).

Video

Video Compression

H264/H265

Main/Sub Stream

Support

Video format/FPS

Daylight Camera:1920x1080//1280x720@25/30fps

IR camera: 384*288@25/30fps

The 3rd: fusion


Network

Network Protocols

IPv4/IPv6,HTTP,HTTPS,,FTP,DNS,DDNS,NTP,RTSP,

RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP

User

Up to 32 users, 3 levels: Administrator, Operator, User

Remote access

WEB,CMS(Smartherm), max 10 cameras can be viewed simultaneously; NVR, the 3rd CMS platform,

Security

support password protection, bunding MAC ID, HTTPS encryption, IP fliteration

API

ISAPI, SDK, third-party management platform, ONVIF and CGI

General

Power

12VDC / 5W, PoE IEEE802.3at

Communication Interface

RJ45 10 M/100 M self-adaptive Ethernet interface

Alarm  switch

Input x1  , Output x1

Storage

Buildin EMMC, 16G

Local storage if network cut off;

Working Temperature/Humidity

Temperature: -20 °C to 60 °C

Humidity: 95% or less

Storage temperature range

-45℃ to 75℃

Protection Level

IP66 Standard

TVS 6000V lightning protection, surge protection, voltage transient protection

Certificate

CE (EN 60950:2000) FCC (FCC Part 15 SubpartB )

Housing material

aluminium alloy
