Night Vision Infrared Camera Online Observation Security Camera E375
- Model
- E375
Item specifics
- Detector type
- Uncooled Microbolometer FPA (Amorphous Silicon )
- Video Output interface
- Ethernet & Female BNC
- Platform compatibility
- ONVIF
- Network interface
- RS-485
- Baud rate
- 2400/4800/9600/19200bps
- Network protocol
- PELCO-D、PELCO-P.
- Size(L×W×H)
- 348mm×240mm×464mm
- IP rating
- IP66
- Certification & Compliance
- CE marked (EN55032:2015)
Review
Description
E375

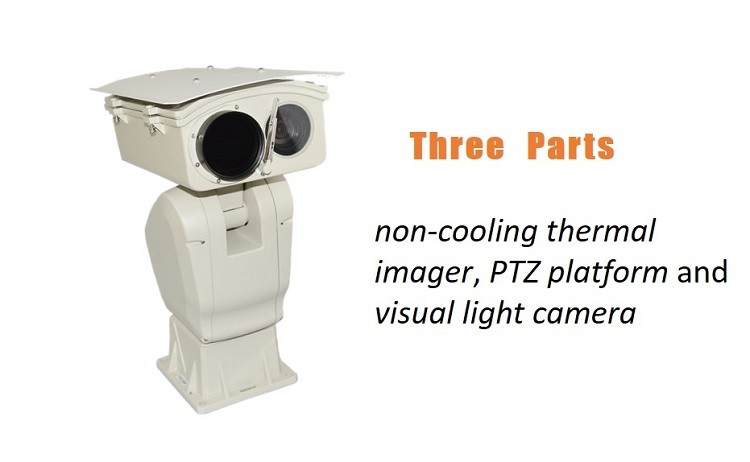

Thermal surveillance camera The Middle Range Dual-spectrum PTZ System
2. Powerful embedded intelligent analysis algorithm makes motion detection, region intrusion detection, line crossing detection, moving path tracking, target enhancement and other intelligent analysis functions done in the device
3. Leading thermal imaging procession algorithm: IDE (image details enhancement algorithm), HDR (high dynamic range algorithm: sea-sky mode, sky-earth mode)
4. Embedded high temperature alarm module, you accurately pre-alarm the fire source in time based on the leading temperature alarming algorithm, pre-alarming grades are adjustable, applicable for the need of fire pre-alarming in different scenes
5. Applicable under extreme bad weather (including complete darkness, rain, snow, smog and etc)
6. Powered by complete functions and interfaces; standardized security interface design, supporting ONVIF and protocol, easily access to the platform
7. Impressive appearance, integrated structural design, easy for installation and maintenance
Technical Specification
|
Items |
ZS-E375 |
||||
Detector
characteristic | |||||
Detector type | Uncooled amorphous silicon FPA | ||||
IR Resolution/Pixel pitch | 384x288/17μm / 640x480/17μm | ||||
Sensitivity (NETD) | ≤50mk | ||||
Frame rate | 25Hz | ||||
Spectral range | 8~14μm | ||||
Focal length | 75mm; Optional: 50mm, 35mm, 60mm | ||||
Focus | Electromotion focus | ||||
|
Digital zoom |
1~8x continuous |
||||
|
Thermal image process algorithm |
IDE, HDR |
||||
Thermal image Smart function | Motion detection, Intrusion alarm, Moving path, Target enhancement | ||||
High-temperature alarm | High-Temperature tracking, Over-temperature alarm | ||||
Visible camera specification | |||||
Matrix type | 1/1.9 inch CMOS | ||||
Effective pixels | 1920(H)×1080(V) | ||||
Optical | Focal length: 6~210mm, 35 × optical zoom | ||||
FOV | 61°~2.0° (wide end ~ tele end) | ||||
F-number | F1.5~F4.8 | ||||
Minimum Illumination | Color: 0.05Lux@ (F1.6, AGCON) | ||||
B/W | 0.001Lux@(F1.5, AGCON) | ||||
Video compression | H.264/MJPEG | ||||
Video output bit rate | 32Kbps-16Mbps | ||||
Video preview | Support preview by IE explorer, PC client | ||||
Camera technical
specification | |||||
Pan/Tilt speed (Manual) | Pan: 0.1°~30°/s max, Tilt: 0.1°~15°/s max | ||||
Pan/Tilt speed (Preset) | Pan: 50°/s, Tilt: 20°/s | ||||
Pan/Tilt Range | Pan: 360° continuous, Tilt: 128° (-88°~+40°) | ||||
Positioning accuracy | ±0.05 | ||||
Automatch of focus and speed | Automatically adjust control speed to match the focus length | ||||
Programmable Preset | 128 | ||||
Auto horizontal scan | Preset to 360°, 4 automatic scanning lines | ||||
Video Output interface | Ethernet & Female BNC | ||||
Platform compatibility | ONVIF | ||||
Network interface | RS-485 | ||||
Baud rate | 2400/4800/9600/19200bps | ||||
Network interface | RS-485 | ||||
Baud rate | 2400/4800/9600/19200bps | ||||
Network protocol | PELCO-D、PELCO-P. | ||||
Operating temperature | -25℃~+55℃ | ||||
Humidity | ≤90%RH | ||||
Input voltage/Power consumption | AC24V, 60W | ||||
Weight | 15 Kg | ||||
Size(L×W×H) | 348mm×240mm×464mm | ||||
IP rating | IP66 | ||||
Certification & Compliance | CE marked (EN55032:2015) | ||||
